GMK87 Configurator
Control your Zuoya GMK87 keyboard. Upload images, configure lighting, sync the clock.
Drop screenshot.png in docs/
Control your Zuoya GMK87 keyboard. Upload images, configure lighting, sync the clock.
Full control over your GMK87 display, lighting, and clock. No proprietary software required.
Desktop app, command line, or Node.js library. Pick what fits your workflow.

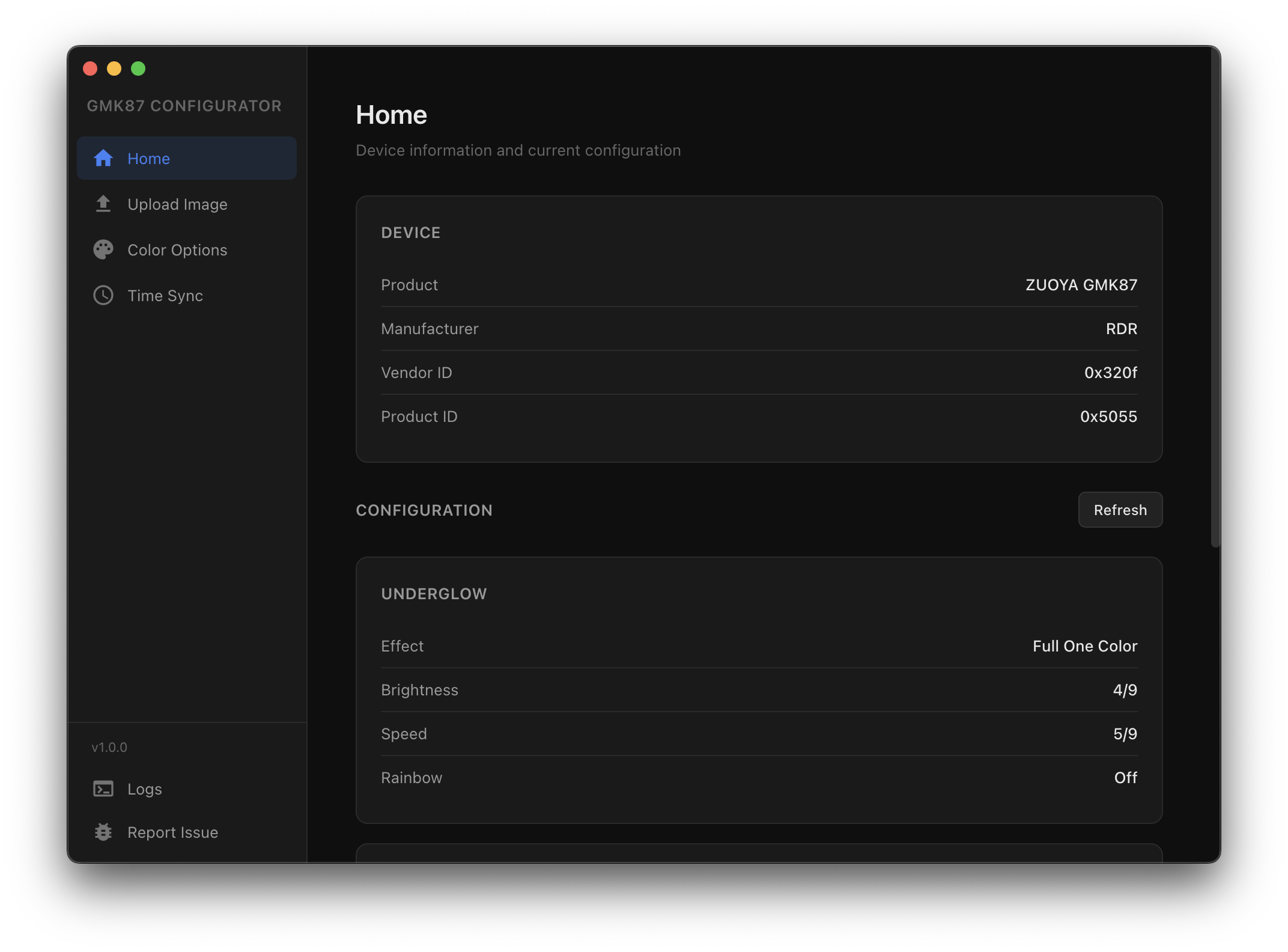

Desktop application with full GUI. Upload images with drag and drop, pick colors visually, apply presets. Available for macOS, Windows, and Linux.
Download →Terminal tools for quick control. Script your setup or integrate into your workflow.
Node.js library for programmatic control. Build your own tools on top of the protocol.
Download the app, plug in your keyboard, and you're good to go. No terminal, no code, no setup required.
Download the app →Developer docs
CLI commands, API reference, and protocol details. Optional, everything here is already built into the app.
Terminal commands for controlling your GMK87 keyboard.
git clone https://github.com/codedgar/gmk87-node.git
cd gmk87-node
npm installOn Linux, copy the udev rules so the keyboard is accessible without root:
sudo cp 50-gmk87.rules /etc/udev/rules.d/
sudo udevadm control --reload-rules && sudo udevadm trigger| Command | Description |
|---|---|
npm run sendimage |
Upload images to the keyboard display |
npm run lights |
Configure keyboard lighting |
npm run preset |
Load a lighting preset |
npm run timesync |
Sync the keyboard clock |
Upload to both slots:
npm run sendimage -- --slot0 cat.png --slot1 dog.jpgUpload an animated GIF with custom frame delay:
npm run sendimage -- --slot0 animation.gif --ms 150Upload a single image to slot 1:
npm run sendimage -- --file image.png --slot 1| Flag | Description |
|---|---|
| --slot0 <path> | Image file for slot 0 |
| --slot1 <path> | Image file for slot 1 |
| --file <path> | Single image file |
| --slot <0|1> | Target slot (default: 0) |
| --ms <number> | Animation delay in ms (min 60, default 100) |
| --show <0|1|2> | Display mode after upload |
Set underglow effect and brightness:
npm run lights -- --effect rainbow-cycle --brightness 5Set custom RGB color with breathing effect:
npm run lights -- --effect breathing --red 255 --green 0 --blue 0Set LED color and mode:
npm run lights -- --led-color blue --led-mode 3| Flag | Description |
|---|---|
| --effect <name> | Underglow effect (0-18 or name) |
| --brightness <0-9> | Brightness (0=off, 9=max) |
| --speed <0-9> | Effect speed (0=fast, 9=slow) |
| --red / --green / --blue | RGB values (0-255 each) |
| --led-mode <0-4> | LED mode |
| --led-color <name> | LED color (red, blue, green, etc.) |
| --show-image <0|1|2> | Display mode (0=time, 1=slot 0, 2=slot 1) |
Apply a preset:
npm run preset gamingList all available presets:
npm run preset -- --listNode.js library for programmatic control of the GMK87 keyboard.
npm install codedgar/gmk87-node// Named imports
import { uploadImage, setLighting, syncTime } from 'gmk87-hid-uploader/src/api.js'
// Default import
import gmk87 from 'gmk87-hid-uploader/src/api.js'uploadImage(imagePath, slot?, options?)

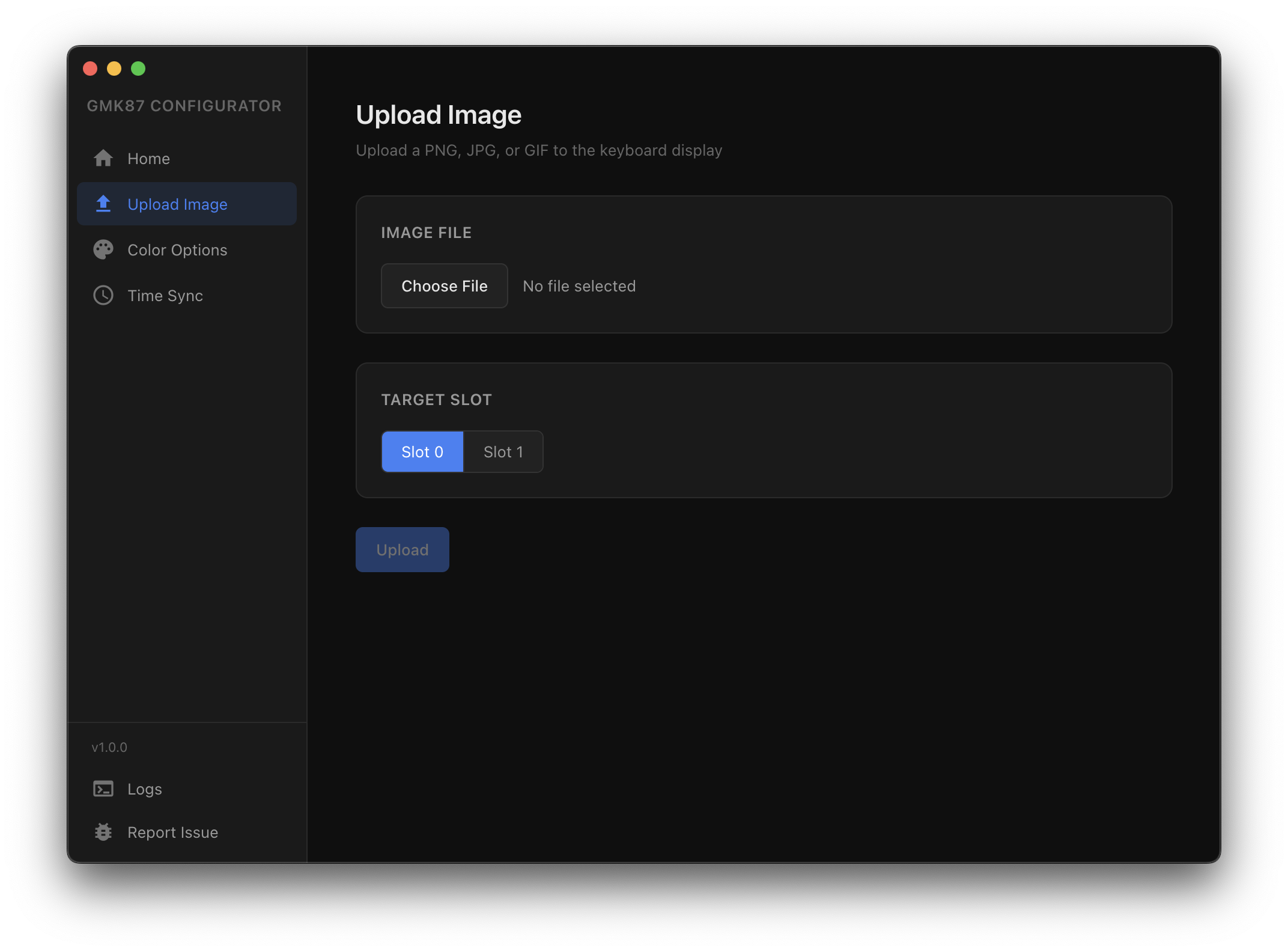

Upload an image or animated GIF to the keyboard display. Supports PNG, JPG, BMP, and GIF (up to 36 frames).
| Param | Type | Description |
|---|---|---|
| imagePath | string | Path to the image file |
| slot | number | Target slot: 0 or 1 (default: 0) |
| options.slot0File | string | Image path for slot 0 |
| options.slot1File | string | Image path for slot 1 |
| options.frameDuration | number | Animation delay in ms (min 60) |
| options.showAfter | boolean | Display image after upload (default: true) |
await uploadImage('./cat.png', 0)
// Upload to both slots
await uploadImage('./cat.png', 0, {
slot0File: './cat.png',
slot1File: './dog.jpg'
})
// Upload animated GIF
await uploadImage('./animation.gif', 0, { frameDuration: 150 })setLighting(changes)

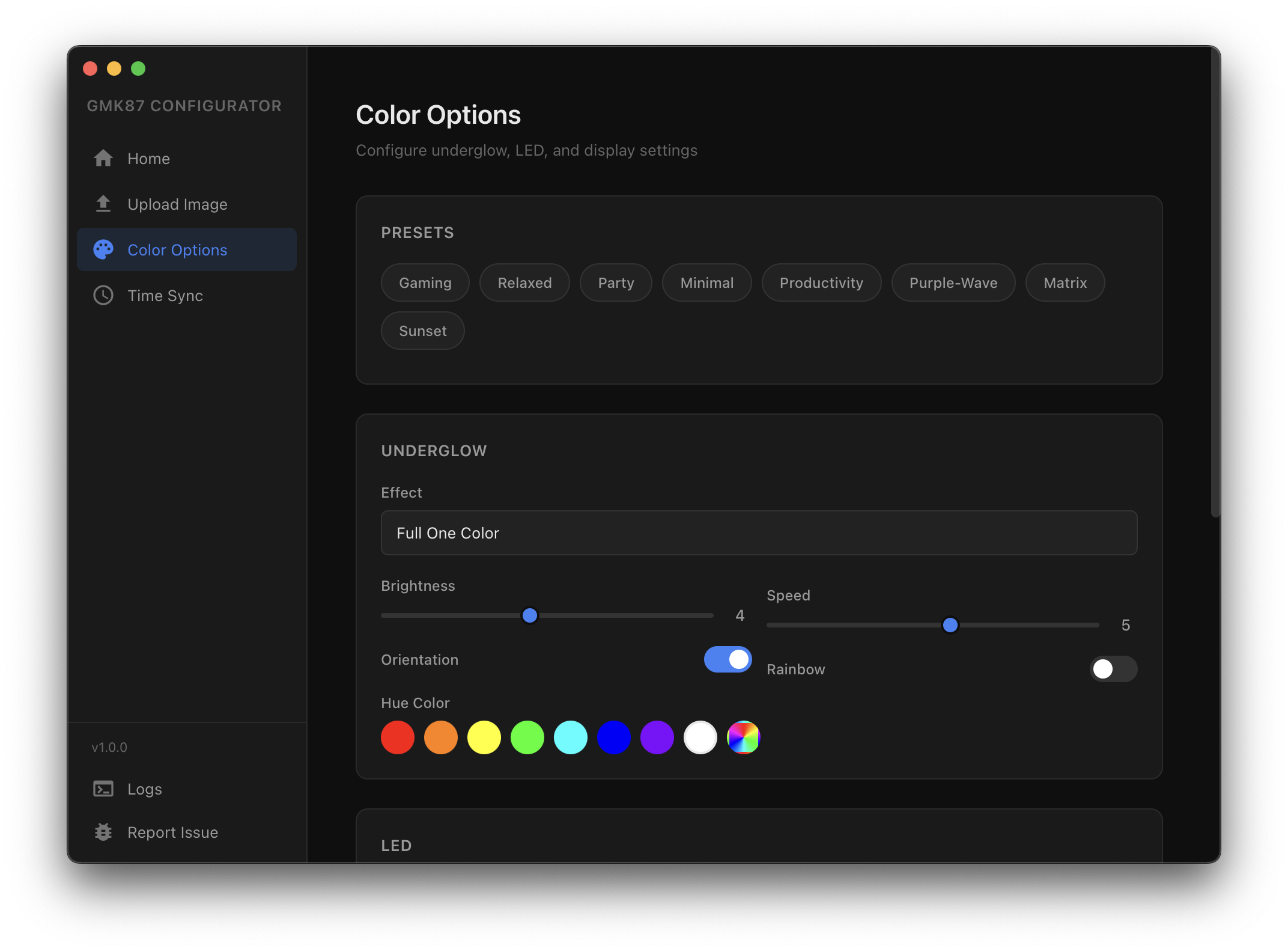

Configure underglow and LED settings. Uses read-modify-write to preserve unspecified settings.
| Param | Type | Description |
|---|---|---|
| changes.underglow.effect | number | Effect index (0-18) |
| changes.underglow.brightness | number | Brightness (0-9) |
| changes.underglow.speed | number | Speed (0-9) |
| changes.underglow.hue | object | { red, green, blue } each 0-255 |
| changes.led.mode | number | LED mode (0-4) |
| changes.led.color | number | LED color (0-8) |
| changes.showImage | number | Display (0=time, 1=slot 0, 2=slot 1) |
await setLighting({
underglow: {
effect: 11, // rainbow-cycle
brightness: 5,
hue: { red: 255, green: 0, blue: 128 }
},
led: { mode: 3, color: 5 } // fixed blue
})showSlot(slot)
Switch the displayed image slot. Convenience wrapper for setLighting({ showImage: slot }).
| Param | Type | Description |
|---|---|---|
| slot | number | 0 = time, 1 = slot 0, 2 = slot 1 |
await showSlot(1) // show image in slot 0
await showSlot(0) // show timesyncTime(date?)

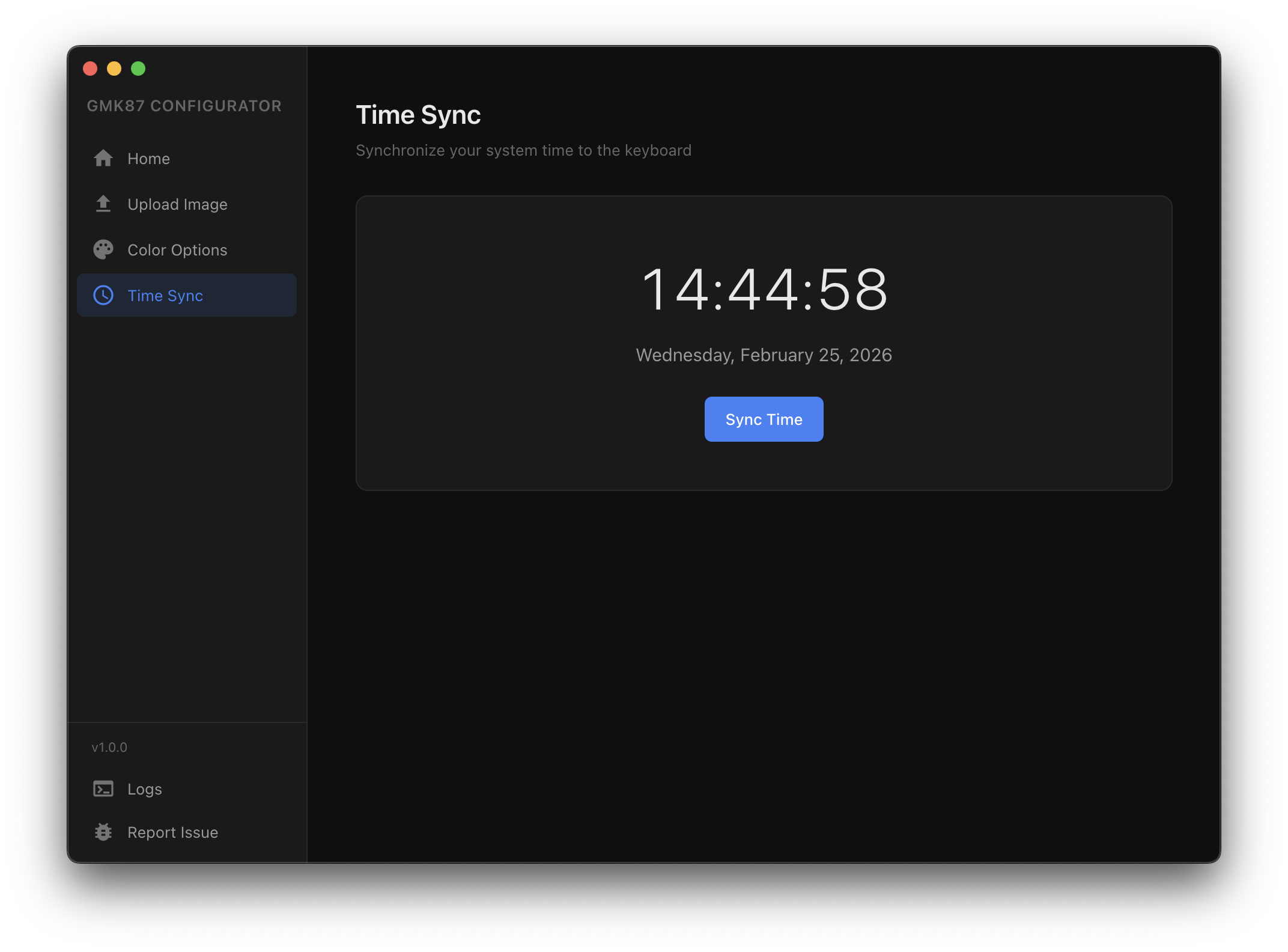

Sync system time to keyboard. Uses read-modify-write to preserve all other settings.
| Param | Type | Description |
|---|---|---|
| date | Date | Date to sync (default: now) |
await syncTime() // sync current time
await syncTime(new Date('2025-12-25')) // sync specific datereadConfig()
Read current keyboard configuration including lighting, display, and time settings.
const config = await readConfig()
console.log(config)
// {
// underglow: { effect, brightness, speed, orientation, rainbow, hue },
// led: { mode, saturation, rainbow, color },
// showImage, // 0, 1, or 2
// image1Frames, // frame count in slot 0
// image2Frames, // frame count in slot 1
// frameDuration, // animation delay in ms
// time: { second, minute, hour, dayOfWeek, date, month, year }
// }getKeyboardInfo()
Get keyboard device info without opening the device. Safe to call on any platform.
const info = getKeyboardInfo()
// { manufacturer, product, vendorId: 0x320f, productId: 0x5055 }
